MOUNT FOR SPIKE IN LIGHT VEHICLE

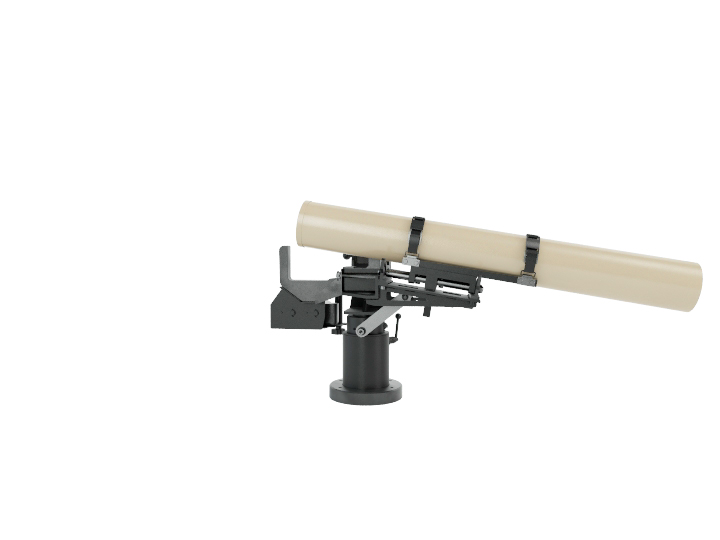

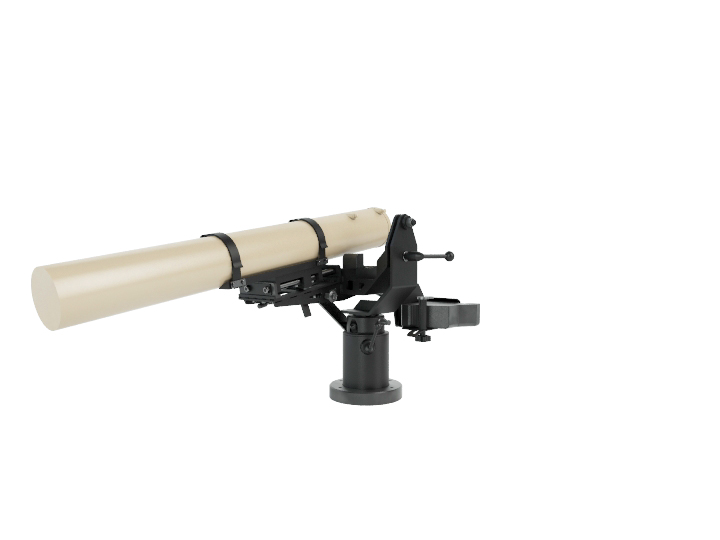

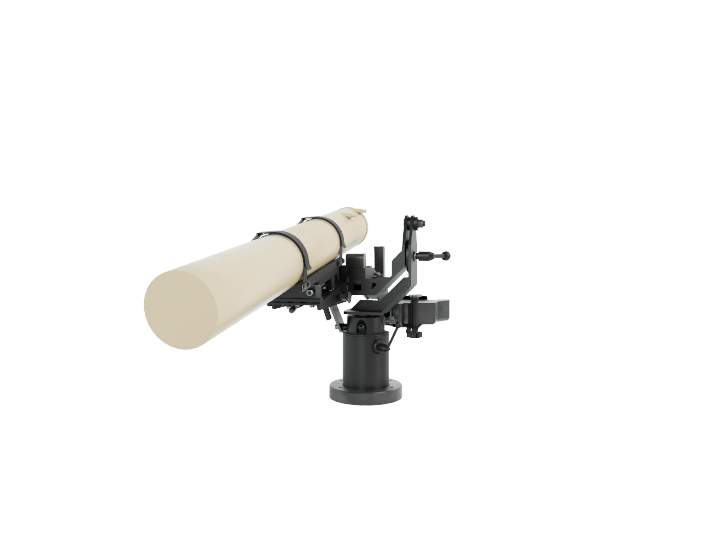

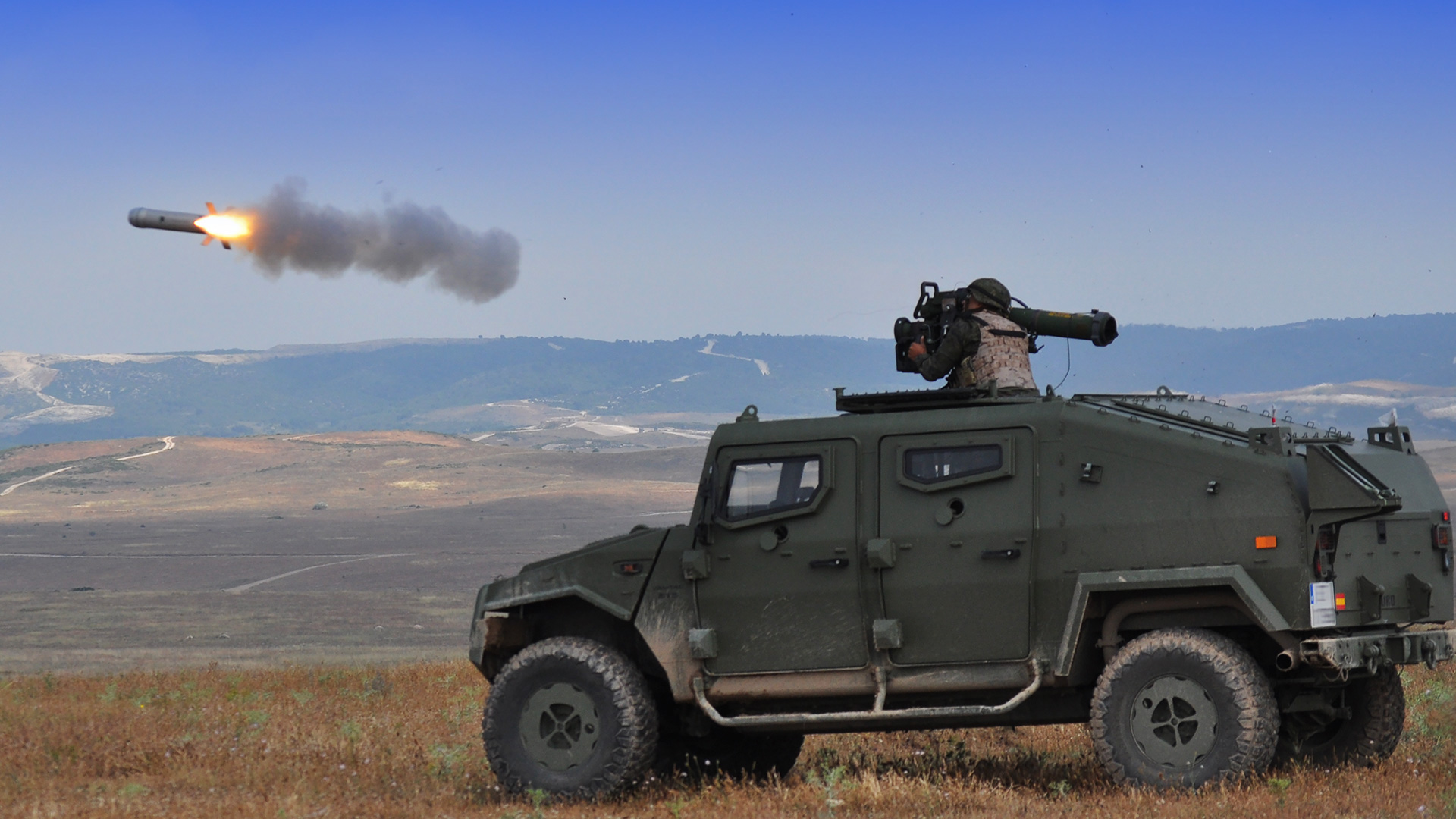

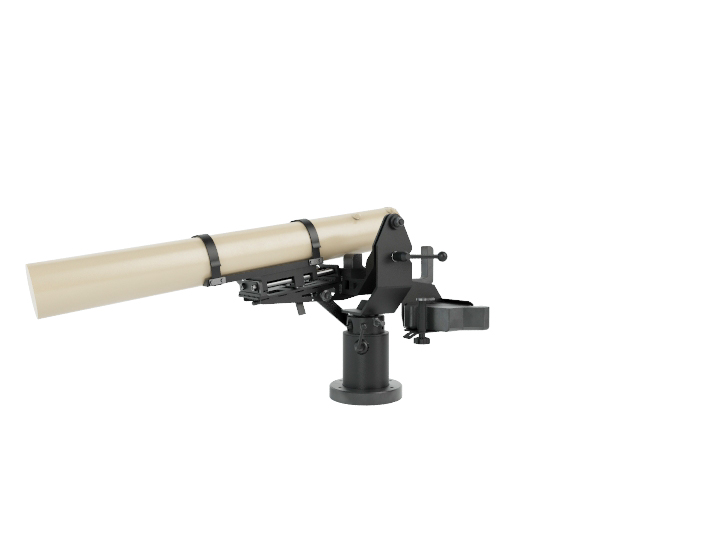

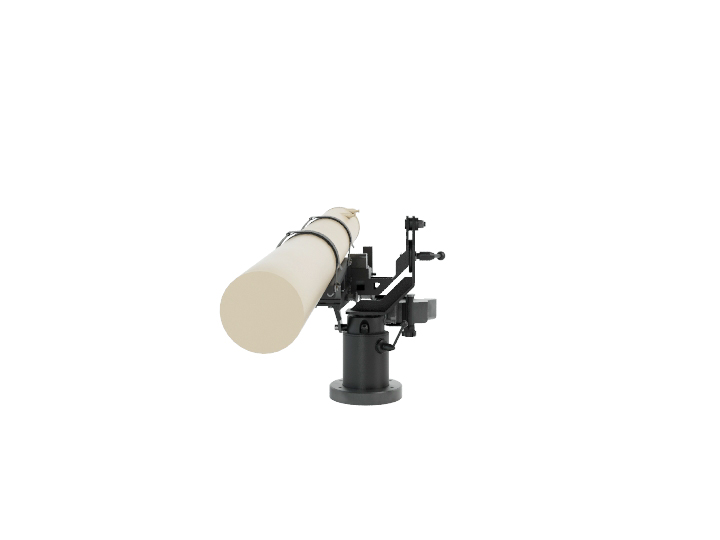

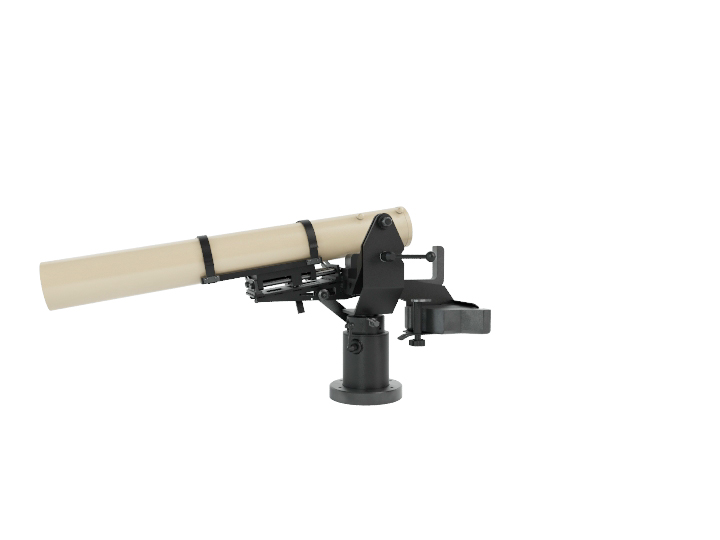

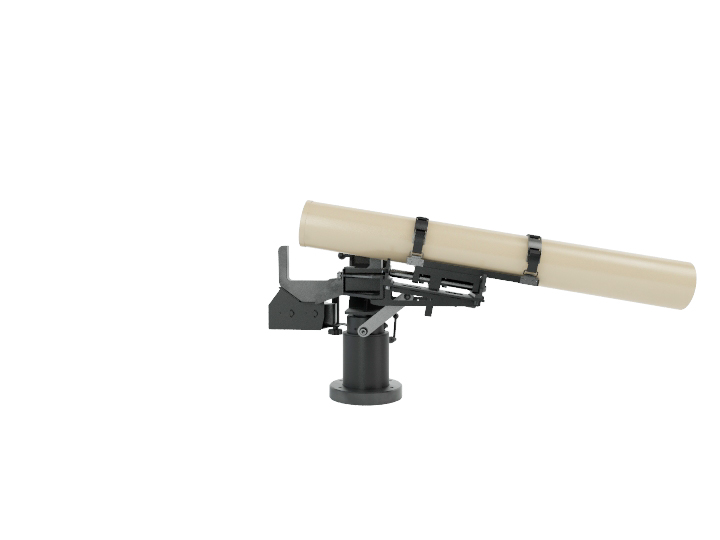

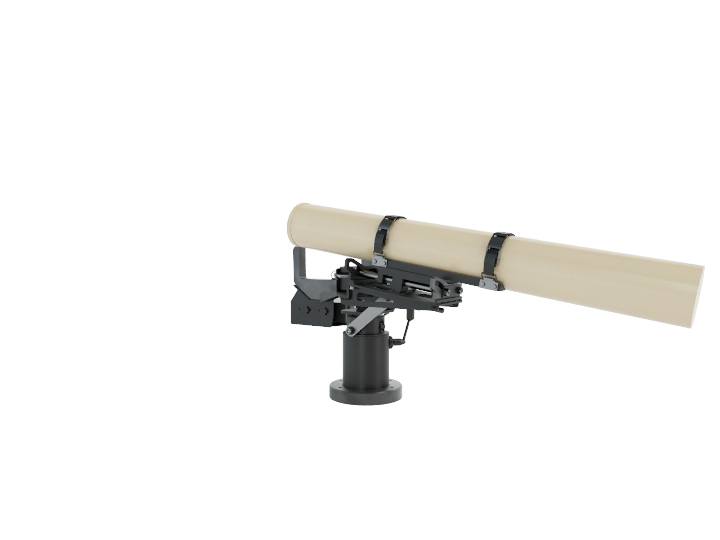

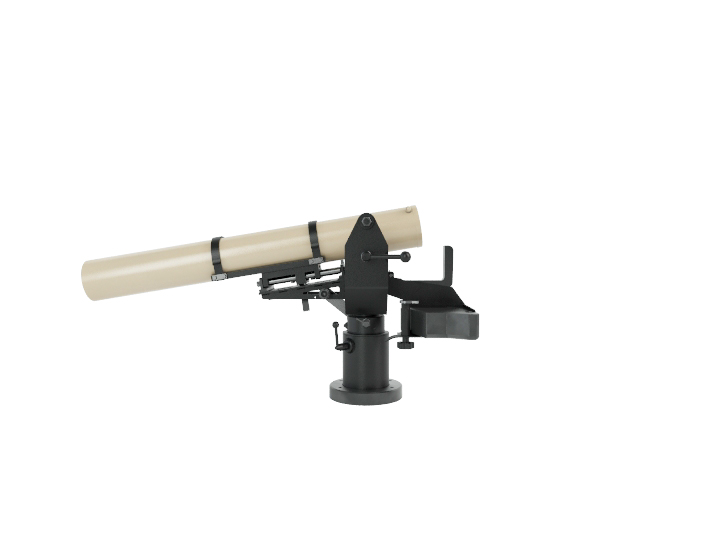

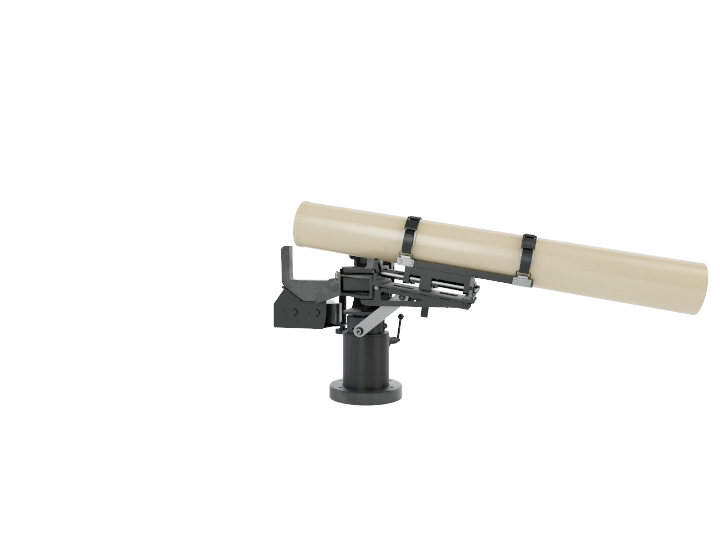

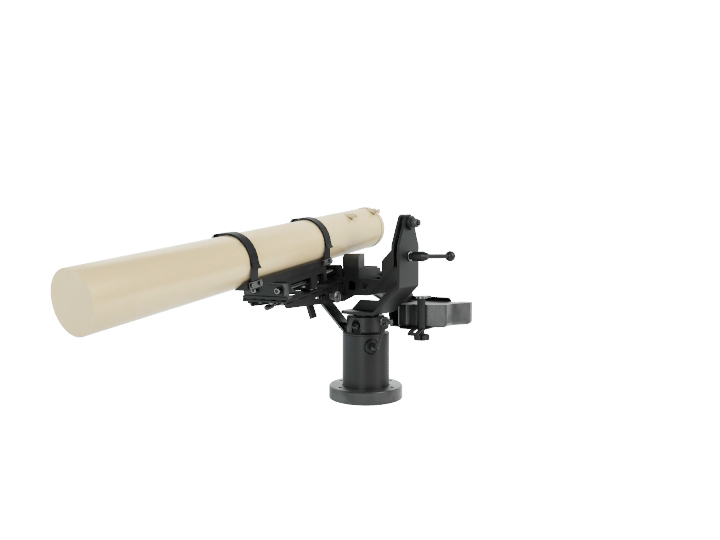

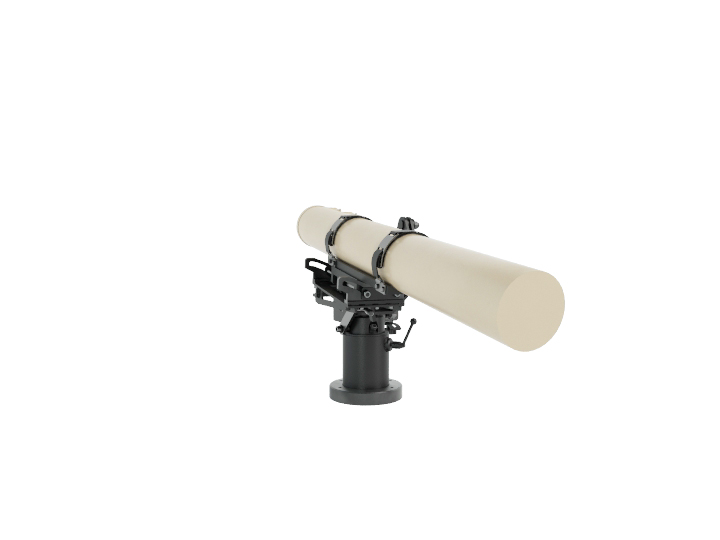

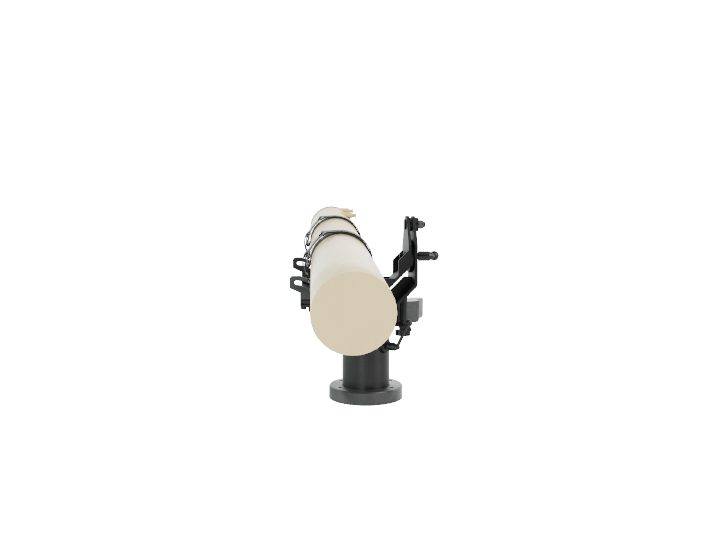

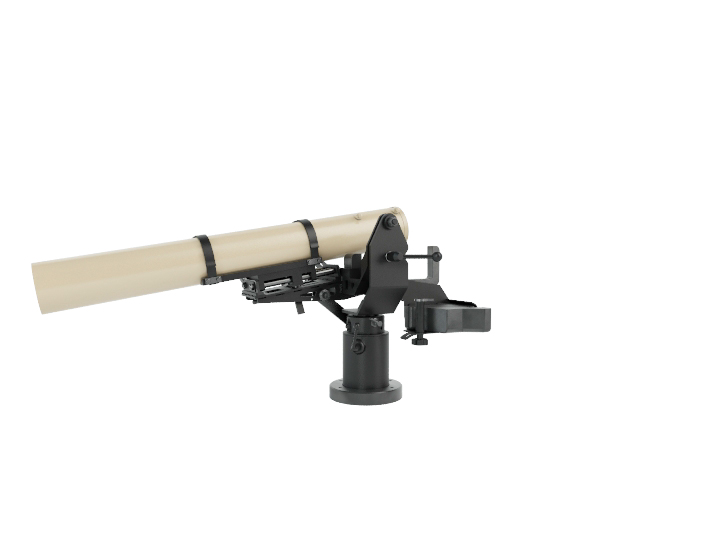

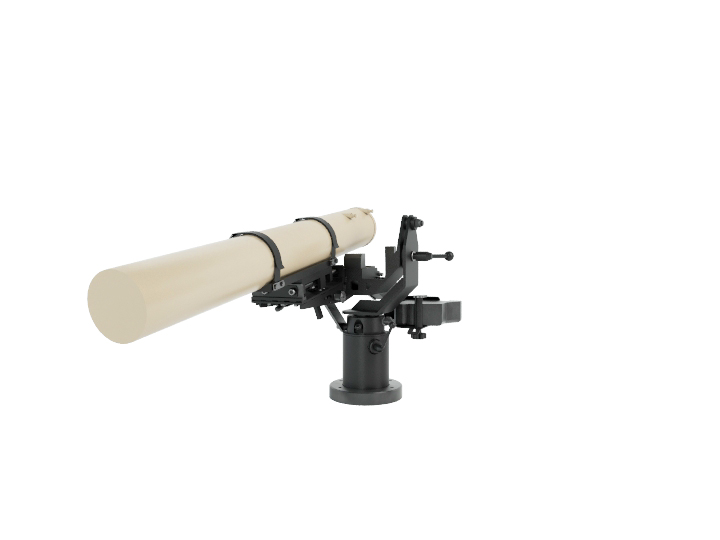

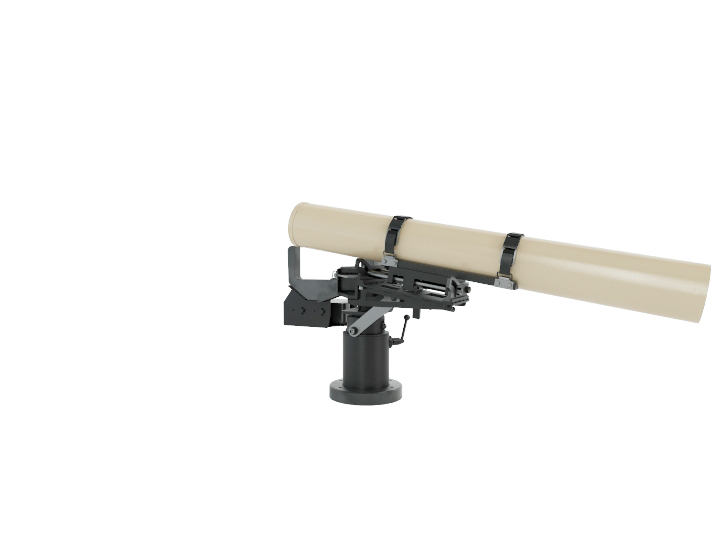

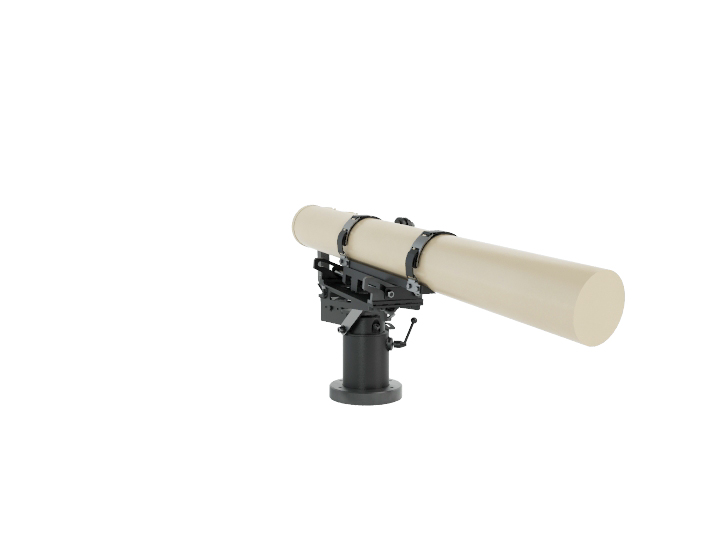

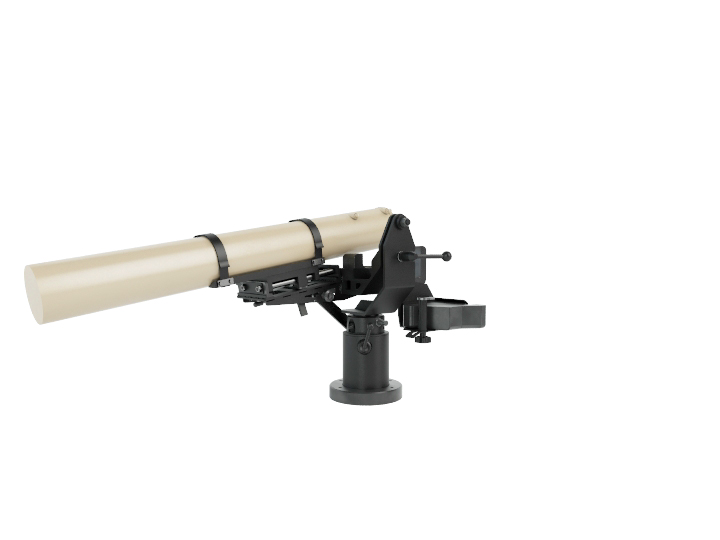

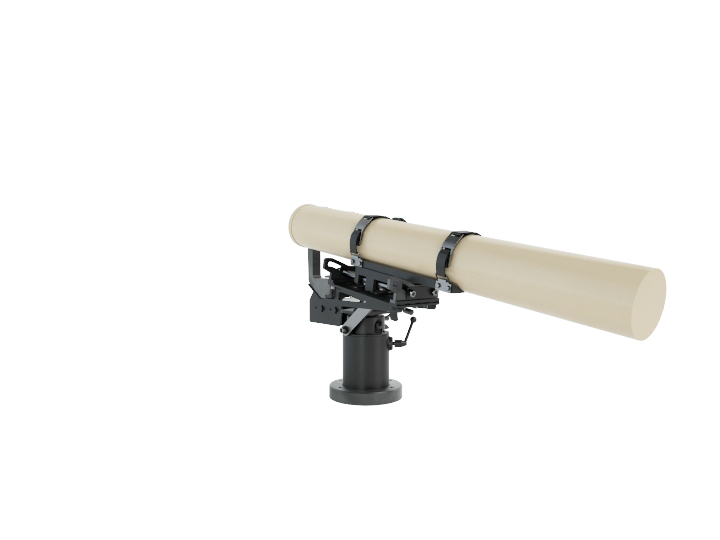

The ML-SP23 equipment is a swivel mount which allows the Spike system missile launcher to be moved and operated on board a vehicle, without the risk of it being damaged due to vibrations transmitted by the vehicle.

Spike
* Weapon, ammo box and accessories not included

DESCRIPTION

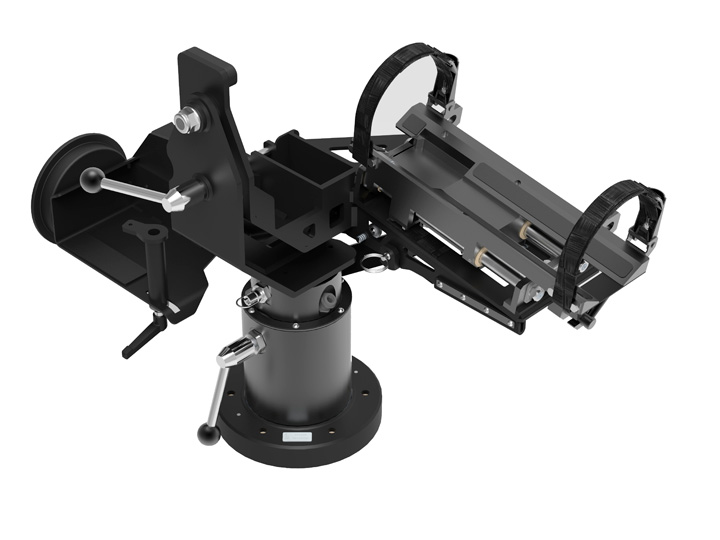

The ML-SP23 mount has been designed to hold the control unit (CLU) and launcher tube in a single support assembly. When the vehicle is moving, the missile tube is decoupled from the CLU to prevent damage due to fatigue at the interface. The system allows rapid coupling of the missile tube to the CLU to allow firing in under 15 seconds.

CHARACTERISTICS

Operating angles:

  • Horizontal rotation: 90º (-45º/+45º)
  • Elevation: 15º
  • Depression: 11 º

Dimensions:

  • Longitud
  • In transport position: 808 mm
  • Minimum length: 743 mm
  • Height
  • Above the roof: 570 mm
  • Above the roof at maximum elevation: 700 mm
  • Below the mounting surface: 45 mm
  • Width: 451 mm

Weight: 46 Kg

Painted in black with high corrosion-resistant powder paint (other colour options)

Materials:

  • S700MC, high elastic limit steel.
  • Stainless steel
  • Aluminium

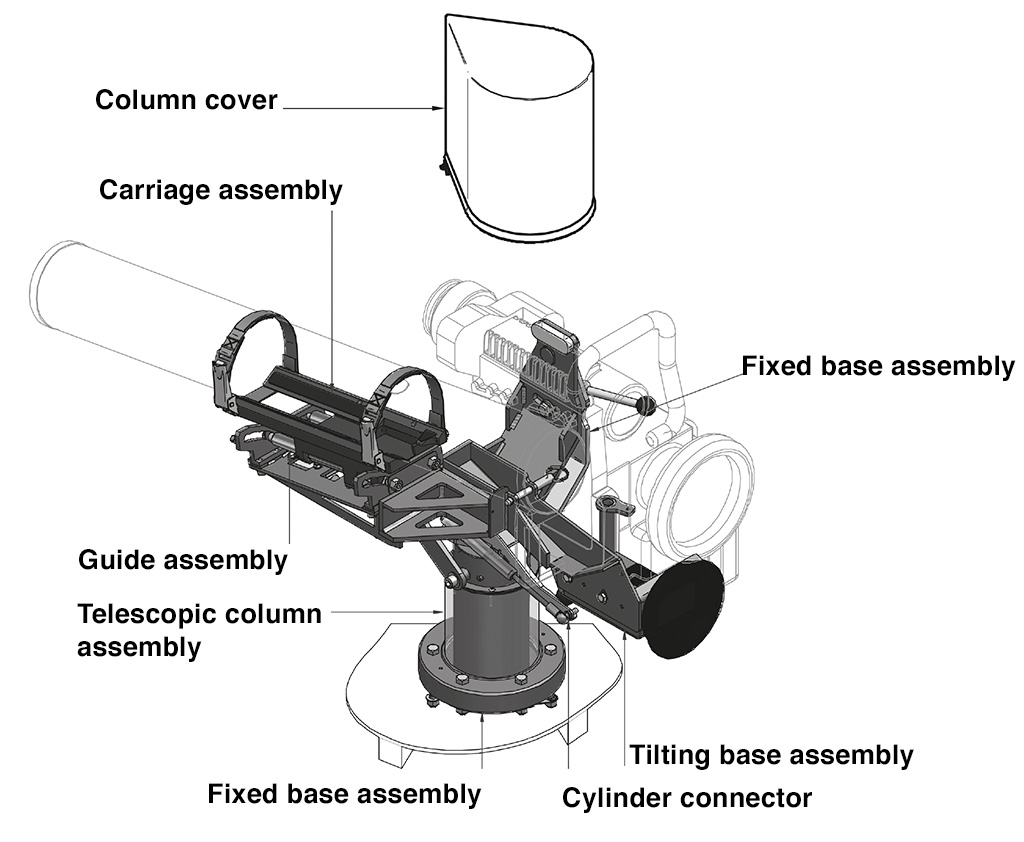

COMPONENTS AND ACCESSORIES
